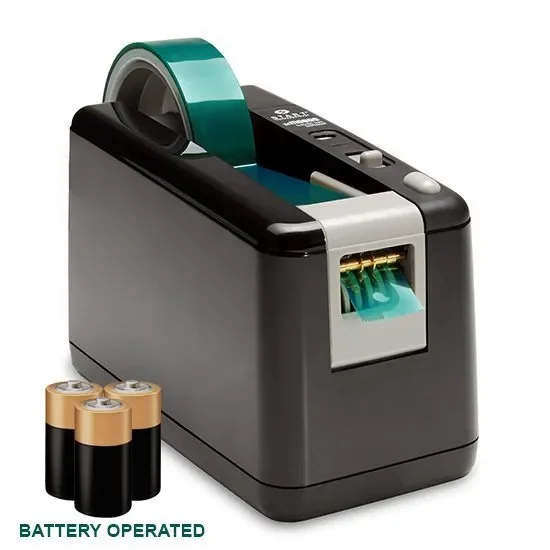

ZCM0800 Tape Dispenser Battery-Powered | 3 Fixed Lengths | 25mm

ZCM0800 Tape Dispenser Battery-Powered | 3 Fixed Lengths | 25mm

SKU: STAR-ZCM0800
HAN: ZCM0800 (Battery only)
Category: Tape-Dispensers
Manufacturers: START International ®

Flexible. Cable-free. Immediately operational. The ZCM0800 by START International is the compact battery-powered tape dispenser for narrow adhesive tapes up to 25 mm wide with three preset fixed lengths (30 / 45 / 90 mm). Automatic feed, manual cut — no mains connection, no programming required. The ideal entry-level solution for low-volume tape applications in production, laboratory, and mobile environments. Made with Japanese components.

149,00 €

excl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Description

ZCM0800 – Battery-Powered Tape Dispenser by START International: Compact, Flexible, Mains-Independent

Not every tape application requires a fully automatic industrial dispenser — and not every workstation has a mains connection within reach. The ZCM0800 by START International is the answer to this operational reality: a compact, battery-powered tape dispenser that works without cables, without programming, and without setup time. Three preset fixed lengths cover the most common standard applications — instantly, anywhere.

Three Fixed Lengths — Simple, Fast, Reliable

The ZCM0800 offers three selectable fixed lengths: 30 mm, 45 mm, and 90 mm. The desired length is selected via a simple switch. The machine automatically advances the tape; the operator pulls the tape across the integrated serrated blade — cutting the piece and simultaneously triggering the next feed. No button press, no programming, no setup.

Battery Operation — Global Flexibility

The ZCM0800 runs on 3 D-cell batteries (not included) — ideal for mobile deployments, outdoor assembly, and workstations without a fixed mains connection. For stationary mains-powered use, the ZCM0800-WT version with a universal AC adapter (100–240 V) is available.

Typical Application Industries

Laboratory & prototyping: Flexible tape application without fixed installation
Light assembly: Low-volume tape applications in manufacturing
Mobile deployments: Field service, outdoor assembly, technician applications
Electronics: Entry-level solution for thin film tapes

What's in the Box

ZCM0800 Battery-powered tape dispenser
Product manual

Technical Specifications – ZCM0800

Parameter	Specification
Model designation	ZCM0800
Power source	Battery-powered (3 × D-cell, not included)
Compatible tape width	6 – 25 mm (0.25" – 1.0")
Fixed lengths	30 mm (1.18"), 45 mm (1.77"), 90 mm (3.54")
Max. roll outer diameter	135 mm (5.3")
Core holder	25 mm (1") and 76 mm (3")
Cutting system	Manual — serrated blade (pulling activates next feed)
Feed	Automatic after cut
Power supply	3 × D-batteries / optional AC adapter (ZCM0800-WT version)
Dimensions (L × W × H)	177 × 96 × 115 mm
Weight	1.23 kg (without batteries)
Country of manufacture	Japan (components)
Box contents	Unit, product manual

The ZCM0800 is the battery-powered entry-level solution for narrow film tapes. For mains-powered operation: ZCM0800-WT. For programmable lengths and photocell auto-feed: ZCM1000.

Item information	Value
Shipping weight:	1,50 kg
Item weight:	1,22 kg
