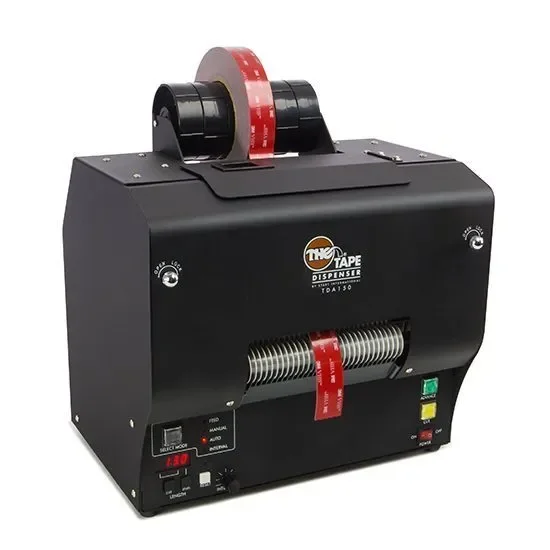

TDA150-NS Tape Dispenser Non-Stick | Foam & VHB™ | up to 150mm

TDA150-NS Tape Dispenser Non-Stick | Foam & VHB™ | up to 150mm

SKU: STAR-TDA150-NS-LF
HAN: TDA150-NS-LF
Category: Tape-Dispensers
Manufacturers: START International ®

Large-area bonding with VHB™ and foam tapes — up to 150 mm wide. The TDA150-NS-LF by START International is the Heavy-Duty dispenser with non-stick advancement rollers for wide high-tack materials: tape widths 6–150 mm, cut lengths 40–9,999 mm, four operating modes, max. 3 mm foam thickness. The most powerful solution for large-area tape applications in automotive, solar, and appliance manufacturing. Engineered in the USA, CE certified.

5.131,00 €

excl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Description

TDA150-NS-LF – Wide-Format Non-Stick Heavy-Duty Tape Dispenser by START International: VHB™ and Foam Tapes up to 150 mm

Where foam adhesive tapes and VHB™ materials are required in widths exceeding 80 mm — in automotive body bonding, solar module manufacturing, or large appliance production — even heavy-duty standard machines reach their limits. START International developed the TDA150-NS-LF for exactly this requirement: as the most powerful non-stick variant in the TDA family, it processes high-tack foam and VHB™ materials up to 150 mm wide — reliably, automatically, and without production interruption.

Non-Stick Technology on the Widest TDA Platform

The specially adapted non-stick advancement rollers of the TDA150-NS-LF are optimised for the reliable feed of wide, high-tack materials. Even 3M VHB™ and comparable structural bonding tapes feed evenly and slip-free — at a maximum material thickness of 3 mm (foam) and 1.5 mm (VHB®). The heavy-duty all-metal construction ensures stable operation even with heavy, wide-format tape rolls.

Four Operating Modes

Manual feed & cut
Manual feed / automatic cut
Automatic feed & cut
Interval feed & cut

Global Application Industries

Automotive: Large-area VHB™ body panel bonding, structural adhesion
Renewable energy: Wide acrylic foam tapes in solar module and wind component manufacturing
Appliance manufacturing: Housing assembly with wide foam adhesive tapes
Packaging: Wide foam sealing and cushioning tapes
General industry: Wherever TDA080-NS width is insufficient

What's in the Box

TDA150-NS-LF Electric Tape Dispenser
Product manual
Silicone oil
Power supply cable

Technical Specifications – TDA150-NS-LF

Parameter	Specification
Model designation	TDA150-NS-LF (230 V EU version: TDA150-NS-2)
Key feature	Non-stick rollers, tape width up to 150 mm, for VHB™ & foam
Compatible tape width	6 – 150 mm (0.25" – 5.9")
Programmable cut range	40 – 9,999 mm (1.6" – 394")
Max. material thickness	3 mm (foam), 1.5 mm (VHB®)
Max. roll outer diameter	228 mm (9")
Core diameter	76 mm (3")
Cut accuracy	±1 mm (material-dependent)
Advancement rollers	Non-stick anti-adhesion rollers
Operating modes	4: Manual F/C \| Manual F/Auto C \| Auto F/C \| Interval F/C
Construction	Heavy-duty all-metal
Safety	Integrated safety interlock
Rated voltage	115 V / 230 V, 50/60 Hz, switchable
Certification	CE (all 230 V models)
Engineered	USA
Box contents	Unit, product manual, silicone oil, power supply cable

The TDA150-NS-LF is the non-stick variant for wide foam and VHB™ tapes up to 150 mm. For standard tapes up to 150 mm: TDA150. For narrower foam tapes up to 80 mm: TDA080-NS.

Item information	Value
Shipping weight:	19,00 kg
Item weight:	17,20 kg
