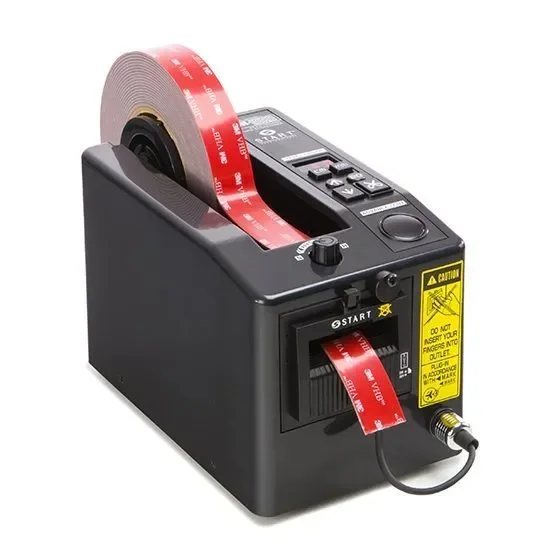

ZCM1000-NS – Non-Stick Tape Dispenser for VHB™, Foam, and High-Tack Adhesive Tapes
In automotive assembly, electronics manufacturing, and appliance production, double-sided tapes, VHB™ bonding tapes, and foam adhesives are indispensable — and they are simultaneously the greatest challenge for conventional tape dispensers. Their extreme tack causes standard advancement rollers to seize, jam, and accumulate adhesive residue, forcing costly production stoppages. START International engineered the ZCM1000-NS as the direct industrial answer to this problem: Teflon-coated non-stick advancement and pressure rollers that guide even the most aggressive adhesive materials through the complete dispensing cycle, reliably and without interruption.
Teflon Coating – The Engineering Solution to High Tack
The non-stick rollers of the ZCM1000-NS carry a high-quality Teflon coating that minimises surface adhesion to the point where even the stickiest materials feed cleanly and consistently. No tape wrapping. No adhesive build-up on machine components. No unscheduled stops. The result is a stable, reproducible dispensing process that holds up under continuous operation with the highest-tack materials on the market — including VHB™ structural bonding tapes, double-sided acrylic adhesives, and foam tapes.
Repeatable Cut Quality in High-Volume Production
The target cut length is programmed once via the digital LED panel and stored permanently in memory. The ZCM1000-NS cuts across a range of 20 to 999 mm with a repeatability of ±1 mm (material-dependent). The guillotine mechanism delivers clean, straight cut edges — even on thicker foam and VHB™ substrates that would challenge a standard cutting head. The integrated photocell detects the removal of each piece and automatically positions the next, maintaining production flow without operator intervention. Manual push-button actuation is available at any time for flexible operation.
Target Materials
- VHB™ tapes (Very High Bond) for structural and load-bearing bonding
- Double-sided acrylic adhesive tapes
- Foam adhesive tapes up to 3 mm material thickness
- High-tack transfer adhesive tapes
- Aggressive industrial mounting and assembly tapes
Global Industries Served
-
Automotive: Body panel bonding, structural adhesion, interior trim assembly
-
Electronics / Appliance: Housing assembly, thermal interface pads, battery systems
-
Renewable Energy: VHB and acrylic foam applications in solar and wind component manufacturing
-
General Industry: Any application where standard dispensers fail with high-tack materials
Proven Industrial Platform – Deployed Worldwide
The ZCM1000-NS is built on the same platform trusted by manufacturers across automotive, electronics, and energy sectors for over three decades. The steel frame and antistatic, flame-retardant composite housing (auto-ignition temperature: 480 °C) ensure reliable operation in demanding and electrically sensitive production environments. Blade life reaches up to 200,000 cuts, and the 3-in-1 core holder (25 / 35 / 76 mm) enables tool-free roll changes in seconds.
For the European market, the ZCM1000-NS-2 (230 V / 50 Hz, CE certified) is the standard supply version. The compact footprint of 24.5 × 13.5 × 16.0 cm and a weight of approximately 2.54 kg integrate easily into any workstation layout.
Free Material Testing
Not sure whether the ZCM1000-NS is the right fit for your specific adhesive tape? START International tests your material free of charge and without obligation in our technical laboratory. You receive a written test report with a tailored machine recommendation. Contact us at info@startinternational.eu or submit a material evaluation request directly via our website.
Technical Specifications – ZCM1000-NS
| Parameter |
Specification |
| Model designation |
ZCM1000-NS (230 V EU version: ZCM1000-NS-2) |
| Product category |
Electric tape dispenser – Non-Stick specialty version |
| Compatible tape width |
7 – 51 mm (0.28" – 2.0") |
| Programmable cut range |
20 – 999 mm (0.79" – 39") |
| Max. roll outer diameter |
178 mm (7") |
| Core holder (included) |
3-in-1: 25 mm / 35 mm / 76 mm |
| Cut accuracy |
±1 mm (material-dependent) |
| Advancement rollers |
Non-Stick, Teflon-coated |
| Tape feed speed |
14.5 cm/s (5.7"/s) |
| Operating modes |
Automatic (photocell) / Manual (push-button) |
| Cutting mechanism |
Guillotine (straight, clean cut edge) |
| Blade life |
Up to 200,000 cuts (material-dependent) |
| Length setting |
Digital (LED), manually overridable |
| Pressure roller |
Adjustable, Teflon-coated |
| Compatible materials |
VHB™, double-sided tapes, foam tapes, high-tack adhesive tapes |
| Frame / Housing |
Steel frame / antistatic flame-retardant composite (480 °C) |
| Dimensions (L × W × H) |
24.5 × 13.5 × 16.0 cm (9.7" × 5.3" × 6.3") |
| Weight |
approx. 2.54 kg (5.6 lbs) |
| Rated voltage |
117 V, 50/60 Hz, <1 A / 230 V, 50/60 Hz (ZCM1000-NS-2) |
| Certification |
CE (all 230 V models) |
| Country of manufacture |
Japan |
| Recommended accessories |
ZFOOTSWITCH, zcM1000P026 (reel stand), zcM1000P550E (dual cutting head) |
The ZCM1000-NS is the recommended solution for VHB™, double-sided, and foam adhesive tapes. For protective films, see the ZCM1000-NM. For standard pressure-sensitive tapes, the ZCM1000 is available. All ZCM1000 variants are listed on our product overview page.
