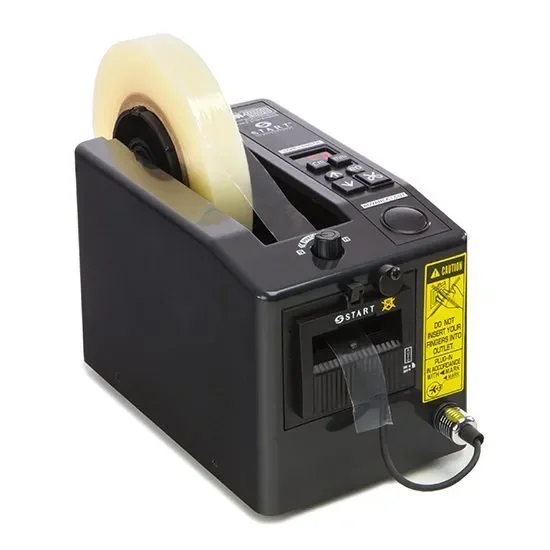

ZCM1000NM – Automatic Tape Dispenser with Non-Marking Technology for Sensitive Film Surfaces
In display manufacturing, automotive surface protection, and electronics production, an invisible pressure mark on a protective film is already a quality defect. Standard dispensers with conventional advancement rollers create exactly these marks — a risk that modern high-precision production cannot afford. START International developed the ZCM1000NM with purpose-engineered non-marking advancement rollers that feed material with sufficient grip for reliable dispensing, while producing absolutely zero surface impressions, scratches, or marks.
Non-Marking – Surface Integrity as a System Requirement
The non-marking advancement rollers of the ZCM1000NM are the result of targeted material engineering. They deliver the grip needed for consistent, slip-free tape advancement while exerting no damaging pressure on sensitive film surfaces. Whether processing transparent protective films, polyethylene surface tapes, or metallic foil adhesives — the ZCM1000NM ensures that the material arrives at the point of application in exactly the condition it left the roll: unmarked and undamaged.
Fully Automated Dispensing – Reliable Batch After Batch
The integrated photocell control detects the removal of each dispensed piece and immediately initiates the feed of the next — fully automatically, without operator intervention. For applications requiring manual control, the push-button trigger is available at any time. The target cut length is programmed once via the digital LED panel, stored permanently, and reproduced with a tolerance of ±1 mm across the full cut range of 20 to 999 mm. The guillotine cutting mechanism delivers clean, straight edges — even on thin and smooth film materials.
Target Industries and Applications
-
Electronics / Display: Protective films for screens, panels, PCBs, and optical components
-
Automotive: Surface protection films for body panels, interior components, and glass
-
Battery & Energy Manufacturing: Film tapes in cell and module production
-
Renewable Energy: Protective films in solar panel and wind component assembly
-
Appliance Manufacturing: Surface protection of sensitive components during assembly
-
Packaging: High-quality film sealing tapes requiring mark-free processing
Global Platform – Proven in the Most Demanding Environments
The ZCM1000NM is built on the same platform trusted by manufacturers across automotive, electronics, and energy sectors worldwide for over three decades. The steel frame and antistatic, flame-retardant composite housing (auto-ignition temperature: 480 °C) ensure dependable operation in electrically sensitive production environments. Blade life reaches up to 200,000 cuts, and the adjustable pressure roller accommodates a wide range of film tape thicknesses. The 3-in-1 core holder (25 / 35 / 76 mm) enables tool-free roll changes in seconds.
For the European market, the ZCM1000NM-2 (230 V / 50 Hz, CE certified) is the standard supply version. The compact footprint of 24.5 × 13.5 × 16.0 cm and a weight of 2.54 kg integrate seamlessly into any workstation layout.
Free Material Testing
Not sure whether the ZCM1000NM is compatible with your specific film material? START International tests your material free of charge and without obligation in our technical laboratory. You receive a written test report with a tailored machine recommendation. Contact us at info@startinternational.eu or submit a material evaluation request directly via our website.
What's in the Box
- ZCM1000NM Electric Tape Dispenser
- Product manual
- Silicone oil
- Safety guard
Technical Specifications – ZCM1000NM
| Parameter |
Specification |
| Model designation |
ZCM1000NM (230 V EU version: ZCM1000NM-2) |
| Product category |
Electric tape dispenser – Non-Marking specialty version |
| Compatible tape width |
7 – 51 mm (0.28" – 2.0") |
| Programmable cut range |
20 – 999 mm (0.79" – 39") |
| Max. roll outer diameter |
178 mm (7") |
| Core holder (included) |
3-in-1: 25 mm / 35 mm / 76 mm |
| Cut accuracy |
±1 mm (material-dependent) |
| Advancement rollers |
Non-Marking – zero surface impressions on film materials |
| Tape feed speed |
14.5 cm/s (5.7"/s) |
| Operating modes |
Automatic (photocell) / Manual (push-button) |
| Cutting mechanism |
Guillotine (straight, clean cut edge) |
| Blade life |
Up to 200,000 cuts (material-dependent) |
| Length setting |
Digital (LED), manually overridable |
| Pressure roller |
Adjustable (for varying tape thicknesses) |
| Frame / Housing |
Steel frame / antistatic flame-retardant composite (480 °C) |
| Dimensions (L × W × H) |
24.5 × 13.5 × 16.0 cm (9.7" × 5.3" × 6.3") |
| Weight |
2.54 kg (5.6 lbs) |
| Rated voltage |
117 V, 50/60 Hz, <1 A / 230 V, 50/60 Hz (ZCM1000NM-2) |
| Certification |
CE (all 230 V models) |
| Country of manufacture |
Japan |
| Recommended accessories |
ZFOOTSWITCH, zcM1000P026 (reel stand), zcM1000P550E (dual cutting head) |
| Box contents |
Unit, product manual, silicone oil, safety guard |
The ZCM1000NM is the recommended solution for protective films and film-based adhesive tapes. For standard pressure-sensitive tapes, see the ZCM1000. For double-sided, high-tack, and VHB tapes, the ZCM1000-NS is available. All ZCM1000 variants are listed on our product overview page.
