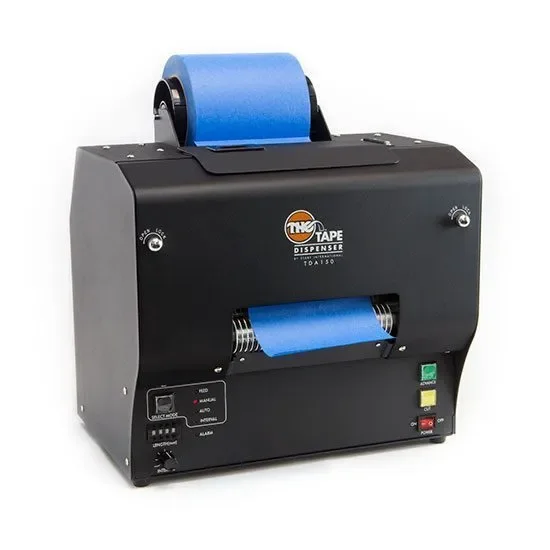

TDA150 – Heavy-Duty Wide Tape Dispenser by START International: Industrial Strength for Tape Widths up to 150 mm
When industrial tape applications require widths beyond 80 mm — in automotive body masking, wide packaging tape sealing, or solar module manufacturing — the TDA150 by START International is the logical and most powerful choice. As the widest model in the proven TDA heavy-duty platform, it processes adhesive tapes up to 150 mm (5.9") wide — with full all-metal construction, four operating modes, and the same process reliability the TDA family is known for worldwide.
The TDA Platform — Scaled to 150 mm
The TDA150 carries all the strengths of the TDA080 into the 150 mm width format: all-metal gears, metal advancement rollers, integrated safety interlock, and a feed speed of 16.8 cm/s. Rolls up to 228 mm (9") outer diameter are accommodated without issue. This makes the TDA150 the first choice wherever wide tapes must be processed precisely, repeatably, and without interruption in high-volume production.
Four Operating Modes — Adapted to Every Global Production Context
-
Manual feed & cut — full process control
-
Manual feed / automatic cut — hybrid flexibility
-
Automatic feed & cut — maximum throughput
-
Interval feed & cut — takt-time line synchronisation
Global Application Industries
-
Automotive: Wide masking tapes in body and paint shops, surface protection films
-
Packaging & Logistics: Wide carton sealing and closure tapes at high volume
-
Renewable energy: Wide-format tape applications in solar module and wind component manufacturing
-
Electronics: Wide protective films and transfer tapes
-
General industry: Wherever TDA080 width is insufficient
Expandable for Any Production Scale
For oversized rolls, the optional external reel stand TDSTAND03 (max. 508 mm outer diameter) is available. The optional foot switch TDA080PFS enables fully hands-free operation. The switchable voltage (115 V / 230 V) makes the TDA150 globally deployable without conversion loss. For the European market: TDA150-2 (230 V / 50 Hz, CE certified).
For foam and VHB™ tapes up to 150 mm, the non-stick variant TDA150-NS is available. For protective films up to 150 mm, the TDA150-NM is recommended. Unsure which variant fits your material? Free material testing programme: info@startinternational.eu
What's in the Box
- TDA150 Electric Tape Dispenser
- Product manual
- Silicone oil
- Power supply cable
Technical Specifications – TDA150
| Parameter |
Specification |
| Model designation |
TDA150 (230 V EU version: TDA150-2) |
| Product category |
Electric heavy-duty tape dispenser, tape width up to 150 mm |
| Compatible tape width |
6 – 150 mm (0.25" – 5.9") |
| Programmable cut range |
40 – 9,999 mm (1.6" – 394") |
| Max. roll outer diameter |
228 mm (9") |
| Core diameter |
76 mm (3") |
| Cut accuracy |
±1 mm (material-dependent) |
| Tape feed speed |
16.8 cm/s (6.6"/s) |
| Operating modes |
4: Manual F/C | Manual F/Auto C | Auto F/C | Interval F/C |
| Length setting |
Digital (push-switch display) |
| Construction |
All-metal — housing, gears, advancement rollers |
| Safety |
Integrated safety interlock |
| Dimensions (L × W × H) |
26.0 × 33.0 × 35.6 cm (10.25" × 13" × 14") |
| Weight |
16.8 kg (37 lbs) |
| Rated voltage |
115 V / 230 V, 50/60 Hz, switchable |
| Certification |
CE (all 230 V models) |
| Engineered |
USA |
| Recommended accessories |
TDA080PFS (foot switch), TDSTAND03 (reel stand max. 508 mm) |
| Box contents |
Unit, product manual, silicone oil, power supply cable |
The TDA150 is the standard version for wide adhesive tapes up to 150 mm. For foam and VHB™ tapes up to 150 mm: TDA150-NS. For protective films up to 150 mm: TDA150-NM. For tape widths up to 80 mm, the TDA080 is the more compact alternative.
