TDA025B – electric carousel tape dispenser for narrow tapes

SKU: STAR-TDA025B
HAN: TDA025B-2
Category: Tape-Dispensers
Manufacturers: START International ®

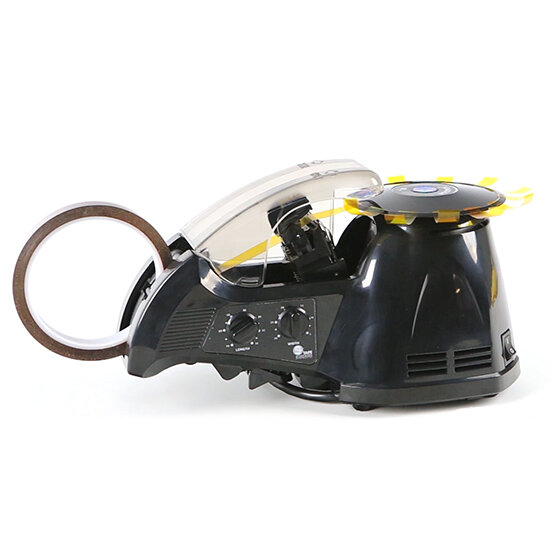

The TDA025B by START International is an electric carousel tape dispenser for narrow tapes. It cuts tape from 3 to 25 mm wide to a preset length between 15 and 70 mm and places each piece on a rotating carousel, ready to pick up. Up to 20 cuts can be prepared at the touch of a button, which makes it well suited to workstations shared by two or more operators. Three modes – automatic, semi-automatic and manual – adapt the dispenser to different workflows. Its small footprint also suits clean-room and medical production.

830,00 €

excl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Description
PDF (2)

TDA025B – electric carousel tape dispenser for narrow tapes

The TDA025B by START International is built to dispense narrow tapes. Instead of handing each cut piece straight to the operator, the feed system places it on a rotating carousel. Several people can work from one unit without getting in each other's way.

What the TDA025B is made for

Wherever the same short, narrow tape pieces are needed again and again – holding parts in place, masking before painting, or sealing small packages – the dispenser takes over that repetitive step. Because the carousel keeps finished pieces ready, the unit fits stations with two or more operators particularly well.

Key features

Handles tape widths from 3 to 25 mm / 0.12 to 0.98"
Cut length adjustable from 15 to 70 mm / 0.59 to 2.76"
Up to 20 pre-cut pieces held on the carousel
Three operating modes: automatic, semi-automatic and manual
Photosensor for cut control
Accepts rolls up to 150 mm / 5.9" outer diameter
Universal core mount, including 1" cores (25 mm)

Clean room and medical use

Thanks to its small footprint and clean output, the TDA025B also works in tight or controlled areas such as medical device and electronics production. For sticky or demanding materials, it is worth checking the specific tape with us beforehand.

Advice and setup

We do not run this shop as a pure box-moving business. If you are not sure whether the TDA025B suits your tape and your workflow, we will check that with you first – by phone or in an online session where we show the unit live.

The TDA025B in action: automatic feed, cut and placement on the carousel.

Specification	Value
Type	Electric carousel tape dispenser
Tape width	3–25 mm / 0.12–0.98"
Cut length	15–70 mm / 0.59–2.76"
Max. roll diameter	150 mm / 5.9"
Core mount	Universal, incl. 1" / 25 mm
Operating modes	automatic, semi-automatic, manual
Cuts per button press	up to 20
Cut control	Photosensor
Manufacturer	START International

Item information	Value
Item weight:	1,90 kg
