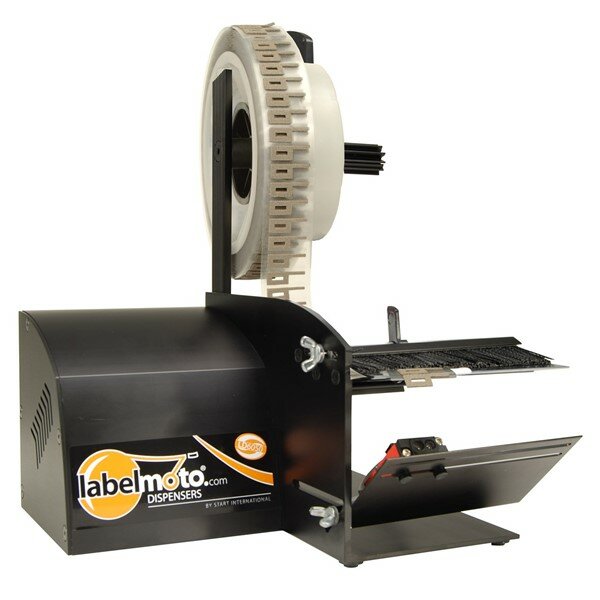

DC6050 High-Speed Dispenser for Die-Cuts and Special Shapes

SKU: STAR-DC6050
HAN: DC6050
Category: Label-Dispensers
Manufacturers: START International ®

DC6050 High-Speed Dispenser for Die-Cuts and Special Shapes – automated label dispensing for maximum throughput.

Designed specifically for die-cut parts in virtually any shape – round, oval, rectangular and custom
Dispenses die-cuts from paper, vinyl, acetate, polyester, foam and film
Photo sensor for precise and continuous dispensing

702,00 €

excl. 19% VAT , plus

Available immediately
Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Description

DC6050 High-Speed Dispenser for Die-Cuts and Special Shapes

Automate your labelling workflow with the Labelmoto® DC6050. The dispenser handles Paper, vinyl, acetate, polyester, foam, film fast and repeatably – for Die-cuts, gasket discs, protective films, adhesive elements in custom shapes. Manual peeling and liner handling are completely eliminated.

Benefits at a Glance

Designed specifically for die-cut parts in virtually any shape – round, oval, rectangular and custom
Dispenses die-cuts from paper, vinyl, acetate, polyester, foam and film
Photo sensor for precise and continuous dispensing
High-torque motor for large rolls up to 305 mm OD
Adjustable peel plate, tool-free size adjustment, automatic liner rewind

Technical Specifications

Specification	Value
Material width	6 – 121 mm
Material length	13 – 152 mm
Max. roll OD	305 mm (12")
Sensor	Photo sensor
Shapes	All shapes and sizes
Peel plate	Adjustable
Liner rewind	Automatic
